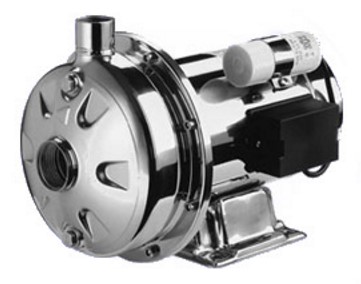

EBARA CD / CDM

EBARA CD / CDM

A high-quality, all-stainless centrifugal CD (CDM) single impeller pump is suitable for transporting drinking water, process water or other aqueous solutions. Ideal application is found especially in filtration and cooling systems in chemical and food industries . The stainless steel engine shell is particularly suited to wet environments such as washing machines, water treatment plants, booster stations, irrigation, domestic waterworks,

pump / device type   CD / CDM (monophase)
Head   up to 40 m
Pressure class   8 bar
Suction ability   7.8 m (NPSH = 1.2 m)
Flow   up to 15 m3 / hour
Power   0.37 - 1.8 kW
Temperature range   to 110 ° C
Material   stainless steel (AISI 304/316)
Price (excl. VAT)
from 6.360, -CZK
Cena (včetně DPH)
from 7.696, -CZK

Characteristics

  • centrifugal single stage pump in single-phase (CDM) and three-phase (CD) version
    • Stainless Steel Engine Cover and Pump (AISI 304/316)
  • Pumps are certified by WRAS (UK) and TIFQ (Italy) for potable water
  • Mechanical seals: carbon / ceramics / tungsten / graphite / NBR / FPM / EPDM
  • quality materials, long service life

Technical parameters

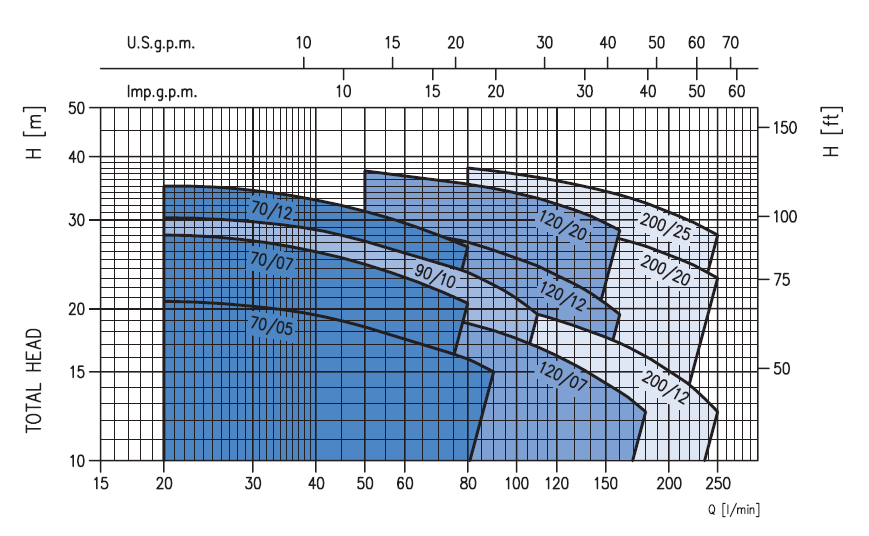

Performance Curve

Spreadsheet table

Model

kW

Q = Traffic (Flow)

Monophase

Three-Phase

l / min 0

20

50

80

90

110

130

160

180

210

250

230V 50Hz

230 / 400V 50Hz

m3 / h

1,2

3

4,8

5,4

6.6

7.8

9,6

10.8

12.6

15

H = Traffic height (m)

CDM 70/05

CD 70/05

0.37

22

20,7

18.4

15.9

15

-

-

-

-

-

-

CDM 70/07

CD 70/07

0.55

30

28

24.5

20.5

-

-

-

-

-

-

-

CDM 70/12

CD 70/12

0.9

37

35

31,2

26.5

-

-

-

-

-

-

-

CDM 90/10

CD 90/10

0.75

32

30.3

27,2

23,6

22,3

19.5

-

-

-

-

-

CDM 120/07

CD 120/07

0.55

22.5

-

20.5

18,7

18.1

16,8

15.5

13,7

12.5

-

-

CDM 120/12

CD 120/12

0.9

31,2

-

29.5

27,1

26,1

24.3

22,4

19.5

-

-

-

CDM 120/20

CD 120/20

1.5

40.5

-

37.5

35,3

34,6

33,1

31,4

28,6

-

-

-

CDM 200/12

CD 200/12

0.9

22.8

-

-

20,6

20,2

19.5

18.5

17,1

16,1

14,6

12.5

CDM 200/20

CD 200/20

1.5

32

-

-

32

30.6

29,7

28,9

27.5

26,6

25,1

23

CD 200/25

1,8

39.4

-

-

38

37.5

36.4

35,3

33,6

32,4

30.5

28

Documents to download

Technical data for EBARA... (0.99 MB)
Performance curves for in... (1.33 MB)
